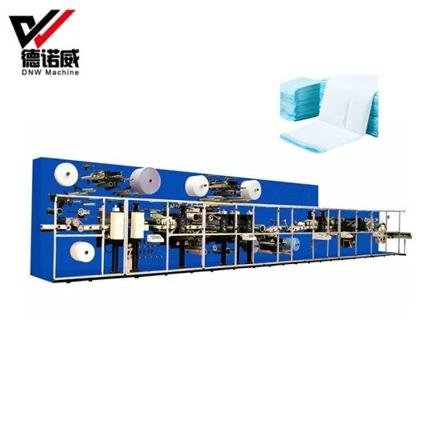

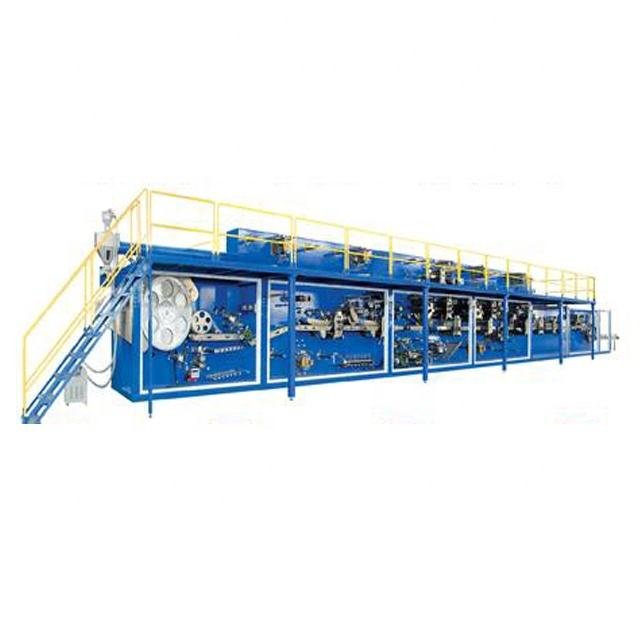

Double Layer Enclosure Leakage Proof Baby Paper Diaper Making Machine
$465000-$948000/set
| Item No. | DNW-BD03 |
|---|---|
| Payment | 30% T/T Deposit,70% Balance Before Shipping |
| Product origin | China |
| Color | Customized |
| Shipping port | Xiamen |
| Lead Time | About 180days |
| Price Range | $465000-$948000/set |
Product Details
DNW-BD03 Double Layer Enclosure Leakage Proof Baby Paper Diaper Making Machine
| Subject | Parameter |
| Overall size(L*W*H) | 24M*4M*3.6M(For reference only) |
| Machine size(L*W*H) | 22m*2.1m*3.3m,based on the product provided by client |
| Design speed | 600pcs/min |
| Stable speed | 500-550pcs/min |
| Pass percentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ(3phase,4lines+ground wire) |
| Machine capacity | 280KW approximately |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | 60T approximately |
| Color | Customized |
Main Configurations:
1. Servo motors driving system with PLC control and big touch screen.
2. High -speed teeth - like crusher.
3. Web - wheel molding.
4. SAP auto adding with amount control.
5. Servo unwinding, auto - tension control and splicing for raw materials.
6. Auto reject for wasted & rejected product, auto detect & alarm for material exhausted.
7. Phase adjusting during running without stop.
8. Diaper tri -folding or double folding.
9. Diaper auto counting & stacking.
10.'S' cutting/magic side tapes.
11. Security door equipped in operation side.
Main structural devices:
1. Crushing device
2. Negative pressure air suction device
3. Demoulding and forming device
4. Polymer applicator
5. Cotton core compaction device
6. Elastic waistline applicator
7. Rubber bar uncoiling device
8. Anti side leakage vertical confining embossing device
9. Front waist paste application device
10. Side waist paste application device
11. Arc cutter device
12. Finished product cutting device
13. Product folding device
14. Waste removal device
15. Stacker (customized)
16. Safety door
Raw materials needed for producing diapers:
1. Baby diapers A-Grade: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt
adhesive + elastic adhesive + hook side tape + Loop frontal tape ADL + Elastic Ribbon + Elastic Waistband
2. Adult diaper A-Grade:pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt
adhesive + elastic adhesive + hook side tape + Loop frontal tape ADL + Elastic Ribbon + Elastic Waistband
Brief Introduction:
DNW Machine is professional engaged in researching, development, production, sales and service of hygiene product equipment, and now already is an excellent manufacturer of household paper equipment.
The company has consistently insist on the "quality is fundamental,develop with innovation" management concept,with a strong design and development team,equipped with advanced CNC Longmen processing center,CNC high precision numerical control lathe,large rocker drill machine,precision saddle lathe,milling machine and other processing equipment,the scientific management of strict supervision and control.
FAQ:
1.What is your delivery date?
Within 180 days after receipt of 30% deposit.
2.How long will be the guarantee?
One-year-old guarantee period from testing finished at the buyer/s workshop.
3.Where is your factory located? How can I visit it?
Our factory located in Quanzhou city, Fujian Province, China. You can fly to Jinjiang airport, we will pick you up.
Engineering note: the Double Layer Enclosure Leakage Proof Baby Paper Diaper Making Machine is configured to your product structure. Our engineers can share the layout drawing, power and compressed-air requirements before you place the order.
Engineering advantages
- Full servo drive with digital size change
- PLC control + HMI touch screen operation
- Imported timing belts and bearings at key positions
- Optional automatic web guide and stacker/bagger
FAQ
Can I get any discount?
The price is negotiable, we can offer you discount according to your order quantity. If you are buying in bulk for an occasion, we offer you wholesale price. We also have promotions several times a year. OEM service support, production can be arranged according to your request.
What is your delivery date?
Within 180 days after receipt of 30% deposit.
What is your payment term?
30% deposit at first, then balance the payment when the goods is shipped.
Where is your factory located? How can I visit it?
Our factory located in Quanzhou city, Fujian Province, China. You can fly to Jinjiang airport, we will pick you up.
